Indoor LED Display In Bangladesh – Overview
An indoor LED display is a high-resolution digital display system designed for seamless and large-format visual presentation inside controlled environments. Unlike traditional screens, indoor LED displays create a bezel-free video wall that delivers uniform brightness, sharp visuals, and smooth motion across the entire screen.
The FrontTech Indoor LED Display is built for professional and commercial applications where visual quality and reliability are critical. With fine pixel pitch options and modular panel design, it supports customized screen sizes and layouts to fit different indoor spaces.
These displays are widely used in corporate offices, retail showrooms, control rooms, auditoriums, and event venues. Designed for continuous indoor operation, FrontTech indoor LED displays provide stable performance, high color accuracy, and a long service life for demanding business environments.
Why Choose an Indoor LED Display?
An indoor LED display is the preferred choice for businesses and institutions that require a large, seamless, and high-quality visual solution. Unlike traditional LCD video walls, LED displays remove visible bezels and deliver a more immersive viewing experience.
The FrontTech Indoor LED Display offers superior brightness control, accurate color reproduction, and flexible screen customization. It is designed for professional indoor environments where clarity, reliability, and long-term performance are essential.
Key reasons to choose an indoor LED display:
-
Seamless display without visible bezels
-
High brightness and accurate color performance
-
Flexible screen size and custom layout options
-
Better visual consistency than LCD video walls
-
Ideal for continuous professional indoor use
Key Features of Indoor LED Display
-
High-resolution LED panels for sharp and detailed visuals
-
Seamless modular design with no visible bezels
-
Wide viewing angle for clear visibility from multiple positions
-
High refresh rate for smooth video and motion content
-
Accurate color reproduction for professional presentations
-
Silent operation with a fanless design option
-
Long lifespan suitable for continuous indoor use
Technical Specification (Indoor LED Display)
This table provides an overview of the core technical specifications of the indoor LED display. It helps buyers compare pixel pitch options, performance, and installation suitability for different indoor applications.
| Specification |
Details |
| Brand |
FrontTech |
| Origin |
China |
| Manufacture |
OEM Manufacturer |
| Model / Series |
FrontTech Indoor LED Display Series |
| Pixel Pitch |
P1.5 / P2 / P2.5 / P3 / P4 / P5 |
| Cabinet Size |
1000 × 250 mm |
| Resolution |
High-Resolution Seamless Display |
| Brightness |
600–1200 cd/m² |
| Refresh Rate |
1920–3840 Hz |
| Viewing Angle |
Up to 160° (H) / 160° (V) |
| Installation Type |
Wall Mounted / Hanging / Fixed |
| Application |
Indoor Use |
LED Module & Display Specification
This table explains the core LED module and display characteristics of the indoor LED display. It helps buyers understand image quality, pixel structure, and visual performance for close-viewing indoor applications.
| Display Feature |
Details |
| LED Type |
SMD LED |
| Pixel Configuration |
1R1G1B |
| Pixel Density |
Up to 640,000 pixels/m² |
| Module Size |
320 × 160 mm / 250 × 250 mm |
| Cabinet Resolution |
Configuration Dependent |
| Color Depth |
14–16 Bit |
Electrical Specification
This table outlines the electrical requirements and power characteristics of the indoor LED display. It helps buyers and installers plan safe power distribution and ensure stable long-term operation.
| Electrical Feature |
Details |
| Input Voltage |
AC 100–240V, 50/60 Hz |
| Power Consumption (Max) |
≤ 450 W/m² |
| Power Consumption (Avg) |
≤ 270 W/m² |
| Power Supply Type |
Switching Power Supply |
| Redundancy Support |
Optional (Configuration Dependent) |
Control System & Connectivity
This table explains how the indoor LED display is controlled and how content signals are transmitted. It helps buyers understand system compatibility, signal stability, and backup support for professional installations.
| Control Feature |
Details |
| Control System |
LED Control System (Sender & Receiver Cards) |
| Signal Input |
HDMI / DVI / VGA (via controller) |
| Data Transmission |
Network Cable / Optical Fiber |
| Backup Signal |
Optional Signal Backup Support |
Environmental & Reliability Specification
This table describes the operating environment, durability, and lifespan of the indoor LED display. It helps buyers evaluate long-term reliability and suitability for continuous indoor operation.
| Environment |
Details |
| Operating Temperature |
0°C – 40°C |
| Operating Humidity |
10% – 90% (Non-Condensing) |
| Protection Level |
IP54 (Front) |
| Lifetime |
≥ 100,000 Hours |
Cabinet & Physical Dimension
This table highlights the cabinet construction and physical characteristics of the indoor LED display. It helps buyers understand build quality, weight, and customization flexibility for different indoor installations.
| Physical Info |
Details |
| Cabinet Material |
Die-Cast Aluminum |
| Cabinet Weight |
Approx. 2.9 kg per cabinet |
| Cabinet Thickness |
Slim Design |
| Screen Customization |
Size & shape are configurable based on the project |
Best Use Cases for Indoor LED Display
Indoor LED displays are widely used in professional and commercial environments where high visual impact, clarity, and reliability are essential. Below are common use cases where indoor LED displays deliver the most value.

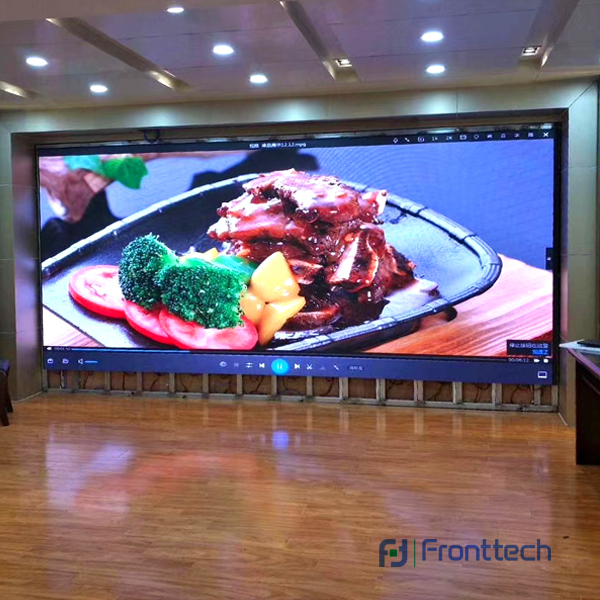

Corporate Offices & Boardrooms
Indoor LED displays enhance presentations, meetings, and corporate communication with large, seamless visuals.
-
High-resolution display for presentations and data visualization
-
Ideal for boardrooms, conference halls, and corporate lobbies
-
Professional and modern visual appearance
Retail Stores & Showrooms
Retail environments use indoor LED displays to attract attention and showcase products effectively.
-
Eye-catching product promotions and branding
-
Flexible screen size for different showroom layouts
-
Improves customer engagement and in-store experience
Control Rooms & Auditoriums
For control rooms and large indoor venues, LED displays provide reliable, continuous visual performance.
-
Clear real-time data and monitoring dashboards
-
Seamless large-screen display without bezels
-
Suitable for long-hour operation in professional environments
Installation & Maintenance
Indoor LED displays are designed for flexible installation and easy long-term maintenance in professional indoor environments. Proper installation and service access ensure stable performance and extended screen lifespan.
-
Supports front or rear service access for easy maintenance
-
Wall-mounted, hanging, or fixed installation options available
-
Modular cabinet design allows quick replacement of components
-
Low-maintenance system suitable for continuous indoor operation
Warranty & After-Sales Support
This section explains the warranty coverage and after-sales services provided with the indoor LED display. It helps buyers understand long-term support, service availability, and reliability after installation.
The indoor LED display comes with standard warranty coverage against manufacturing defects under normal operating conditions. Technical support is available for installation guidance, system configuration, and troubleshooting. Spare parts and maintenance services are provided to ensure stable performance, minimal downtime, and long-term operational reliability.
Price & Purchase Information
This section explains how pricing is determined for indoor LED display solutions. It helps buyers understand cost factors before making a purchase decision.
Indoor LED Display Prices depend mainly on pixel pitch selection, total screen size, cabinet configuration, and installation requirements. Smaller pixel pitch and larger screen sizes typically result in higher costs. Institutional and project-based quotations are available based on site requirements, usage purpose, and customization needs.
Frequently Asked Questions (FAQ)
This section answers common questions to help buyers understand performance, suitability, and long-term value before selecting an indoor LED display solution.
Which pixel pitch is best for indoor use?
The best pixel pitch depends on viewing distance. For close viewing, P1.5 or P2 is ideal. For medium viewing distances, P2.5 or P3 works well, while P4 or P5 is suitable for larger indoor spaces.
Is an indoor LED display better than an LCD video wall?
Yes. Indoor LED displays provide a seamless viewing experience without bezels, better brightness uniformity, wider viewing angles, and longer lifespan compared to LCD video walls.
Can the screen size be customized?
Yes. Indoor LED displays are modular, allowing full customization of screen size and shape based on project requirements and available space.
What is the lifespan of an indoor LED display?
Indoor LED displays are designed for long-term use and typically offer a lifespan of up to 100,000 hours under normal operating conditions.
